2. SOL

Solar systems

SOL

Solar collectors - forced draft

Residential / Commercial
Vertical / Horizontal

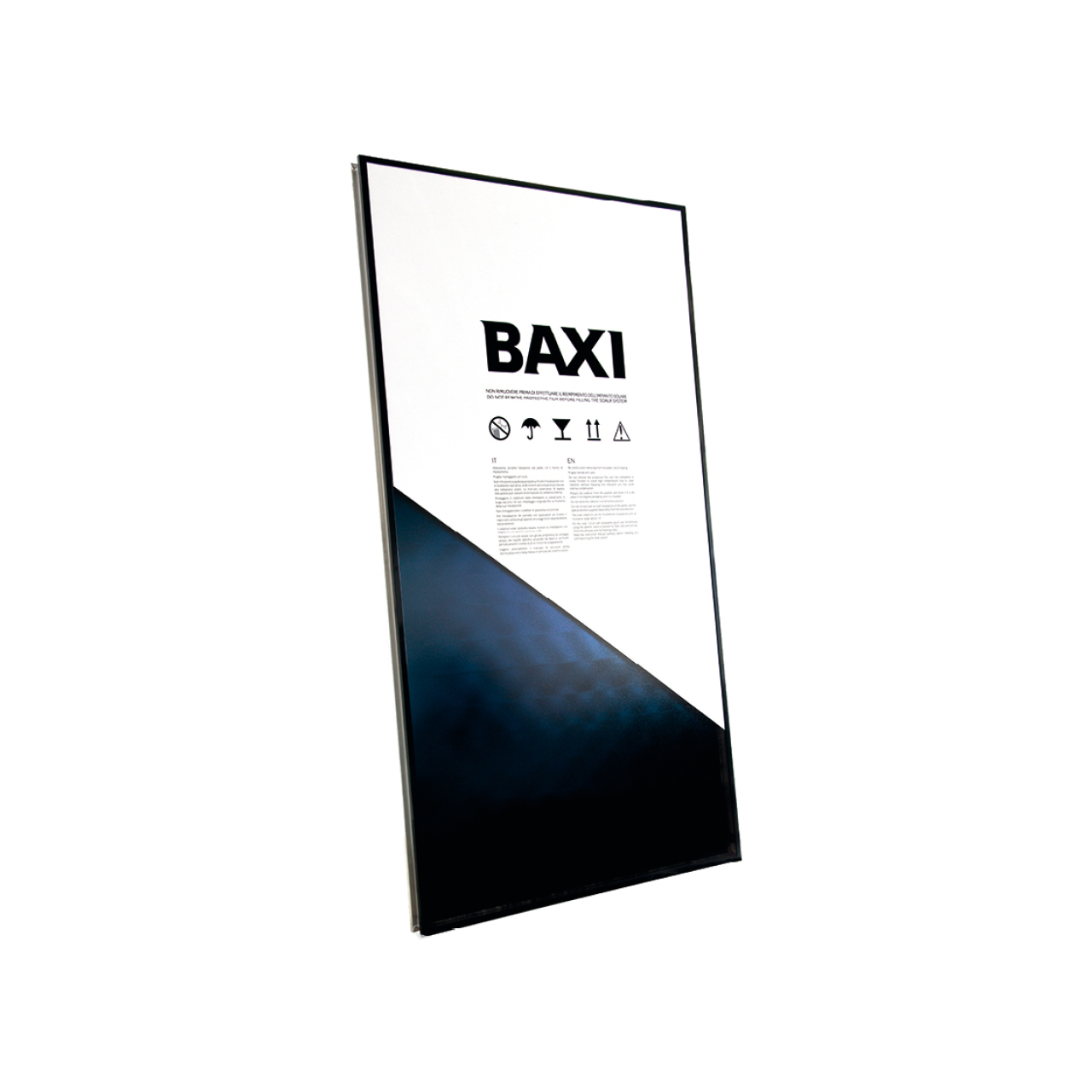

SOL solar collectors exploit solar energy for domestic hot water production and heating.


SOL is a range of vertical and horizontal forced-draft solar collectors, ideal for combination with other Baxi products for the creation of highly energy efficient integrated systems.

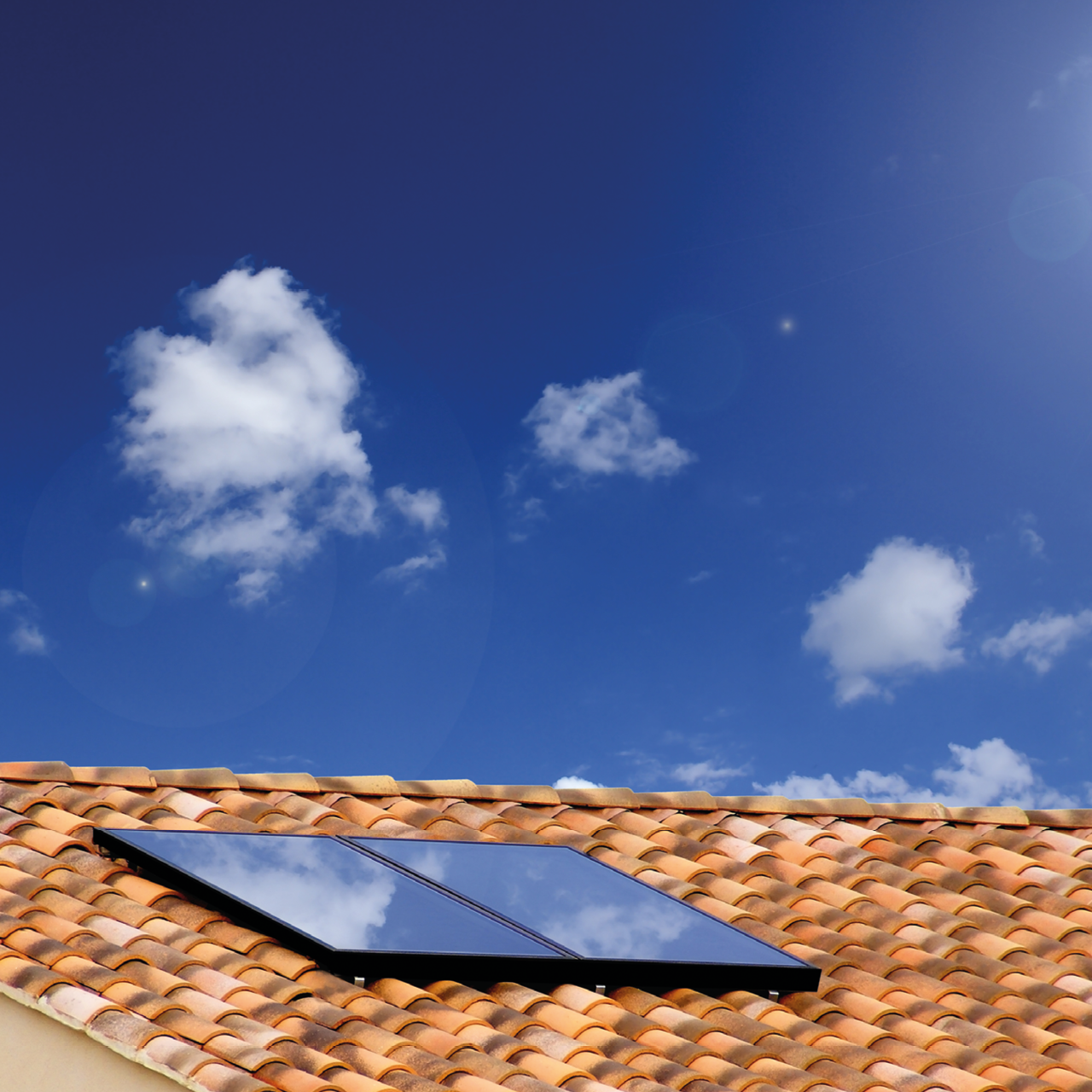

SOL can be installed both on a flat or pitched roof.

Find a Dealer
Download Area
Characteristics


  • Models: 2, 2,5 m² surface
  • Vertical/horizontal solar collectors with Solar Keymark certification
  • For flat and pitched roofs
  • Gross surface: 2,52 m² (SOL 250-V and SOL 250-O), 2,02 m² (SOL 250-O)
  • Elegant design: profile and coatings are the same color as glass, ensuring the seamless integration of the panel on every roof type
  • Brass compression-fitting connections
  • Up to 10 collectors can be connected in series (an Omega has to be connected after the fifth one)
  • Covering: single solar glass ESG that is pre-stressed, non-ferrous, hail resistant and 3,2 mm thick
  • Absorber: laser welded aluminium slab (0,4 mm thick) with copper meander pipe (8 mm diameter) and highly selective treatment

Features

Keymark

The product follows the European Standards, and it is marked with Keymark

Technical Specification

MODELS250-V250-O200-V
Installation
TypeA-frame, on-roofA-frame, on-roofA-frame, on-roof
Orientationverticalhorizontalvertical
Connectionscompression-fittingscompression-fittingscompression-fittings
Performance
Maximum working pressurebar101010
ŋo - Efficiency (with reference to the absorber surface)%808280
α Heat lossesW/m²K3,897 3,2263,914
Panel
Gross surface

m²

2,522,522,02
Absorber area

m²

2,352,351,87
Aperture area

m²

2,42,41,92
Collector capacityl1,41,81,2
Dimensions (h x w x d)mm2191 x 1151 x 701151 x 2191 x 701757 x 1151 x 70
