Baxi Mago

The comfort at fingertips

Residential
Wired chronothermost + mobile app

The Baxi Mago is a simple to use smart room thermostat compatible with Baxi boilers and Alya air source heat pumps.


You can schedule your heating to come on each day to suit you and your household’s lifestyle.

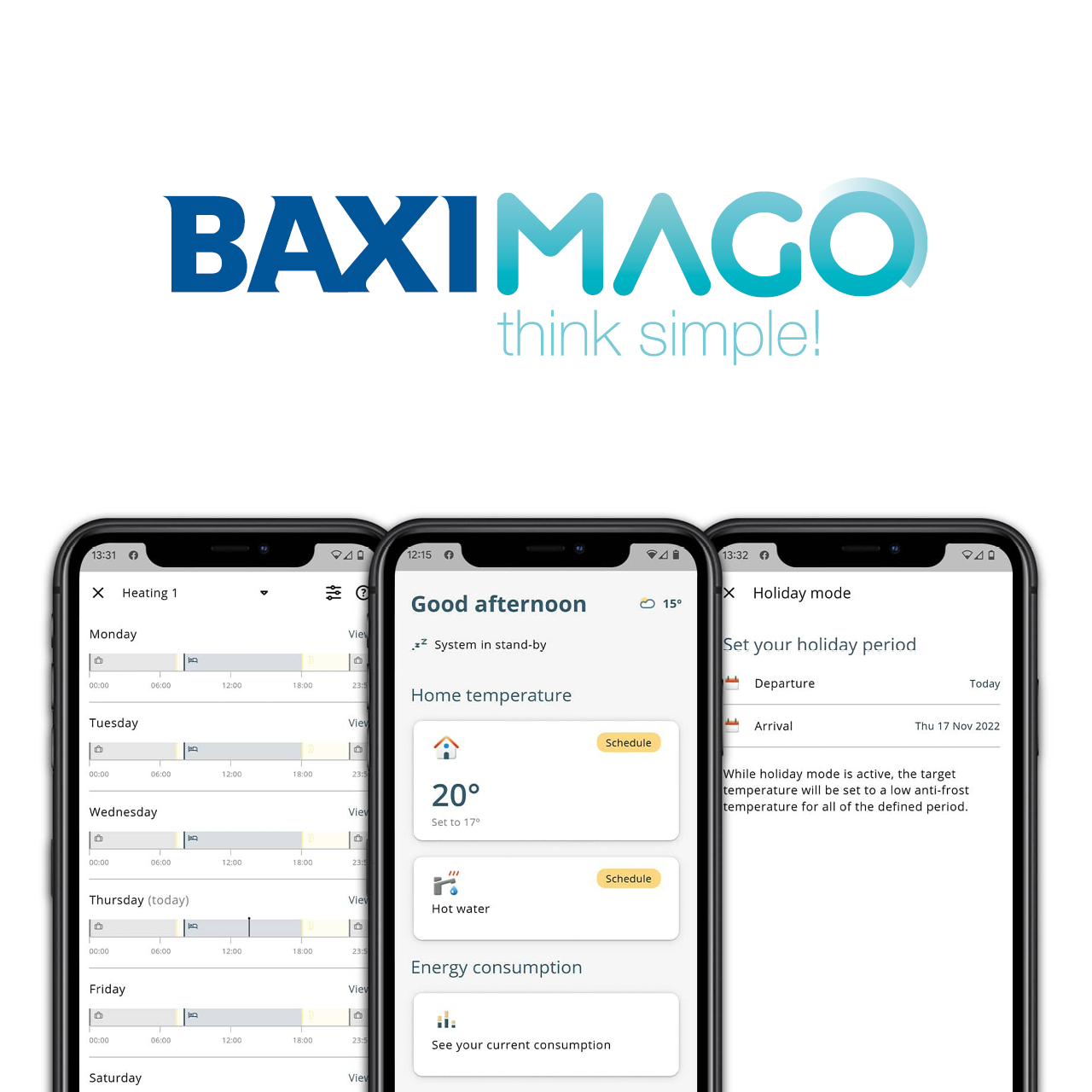

Times when you come back at a cold home will be just an old memory: with My Baxi, the new app to control your Baxi Mago smart room thermostat, you can control your heating and hot water, wherever you are!


An innovative tool with a unique design, combining extreme ease of use and modern design.

Find a Dealer
Download Area
Characteristics

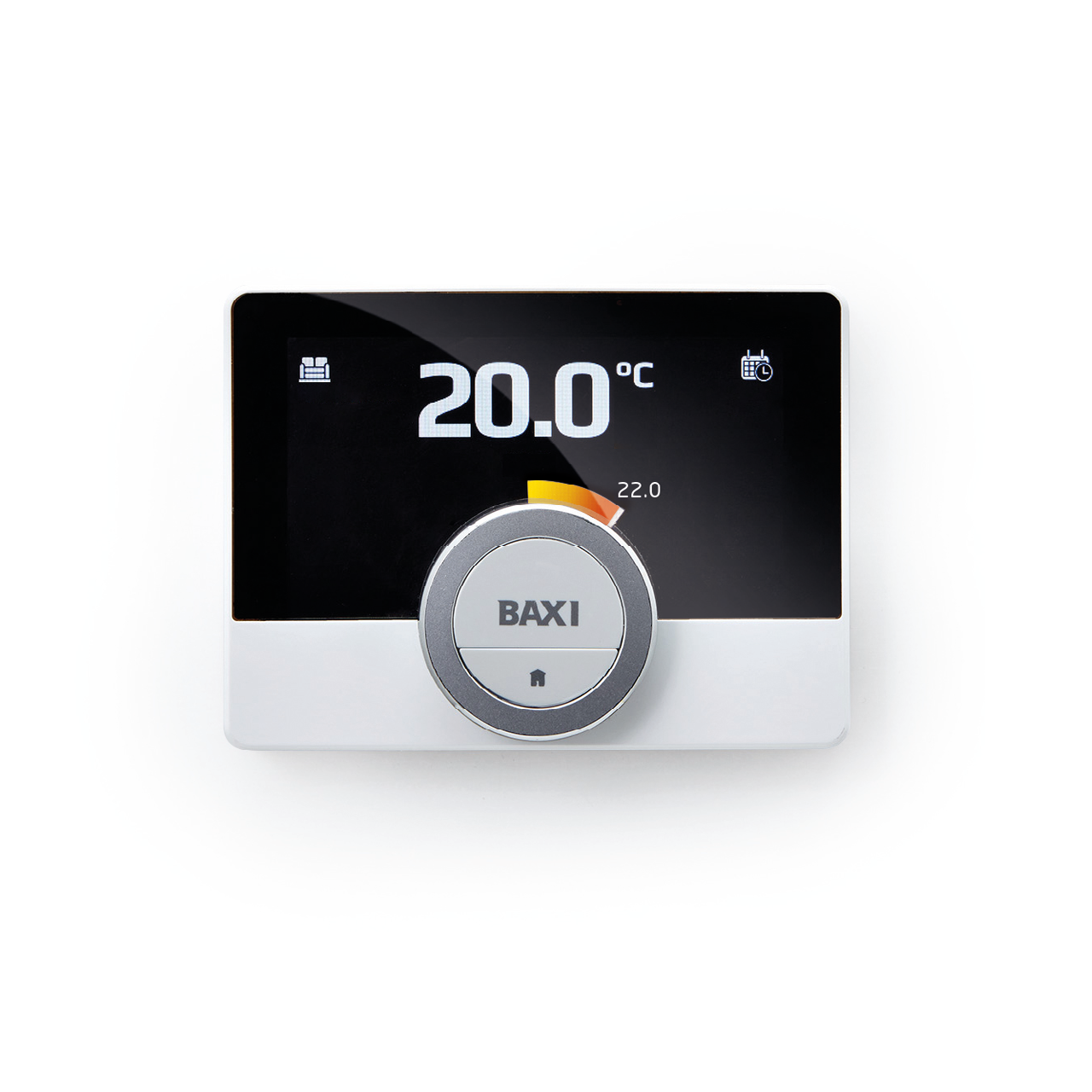

  • Modern design and easy to use. Thanks to the control knob and back-lit display, the screen is easy to read, and the temperature can be easily adjusted.
  • Complete control at fingertips, anywhere and anytime from smartphone and tablet with My Baxi app.
  • Multiple smartphone control options, so each member of the family can interact.
  • Easy programming: Baxi Mago creates a schedule based on your habits after answering just a few questions.
  • Up to five different scenarios related to multiple temperature requirements (“day”, “night”, “evening”, “out of home”, etc.).
  • Baxi Mago helps save money and keeps energy consumption under control, providing weekly, monthly or annual consumption graphs.
  • It works with Google Home and Amazon Echo voice assistants.
  • Improve the system energy efficiency: combining Baxi Mago with a 94% energy efficiency condensing boiler, and an outdoor sensor (physical or cloud-based)* increases efficiency by 4%, bringing the total space heating efficiency of the system to 98% (equal to A+ energy rating).

Technical Specification

MODELSBaxi Mago
Dimensions
Width x height x depth*mm120 x 90 x 27
Electrical power supply
Bus connection voltageV24 ± 5%
Maximum electrical consumptionW1,5
Electrical connection
Maximum cable length for dedicated Baxi Mago busm50
Maximum cable resistanceOhm2 x 5
WI-FI connession
Band2,4 Ghz band (802.11 b/g /n)
Ambient conditions
Operating conditions°C0-60
Temperature
Measurable room temperature range°C5-60
Maximum temperature deviation at 20°C°C0,3
Maximum room control overshoot after pre-heating°C1
Temperature variation°C+/-0,5
Temperature control range°C10-30

* some boilers could require the installation of a gateway 84 x 145 x 29 mm (width x height x depth).

List of countries where the internet-based outdoor sensor is available: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden.
