Ventilation systems

BV-IN

Built-in heat recovery ventilation

Residential

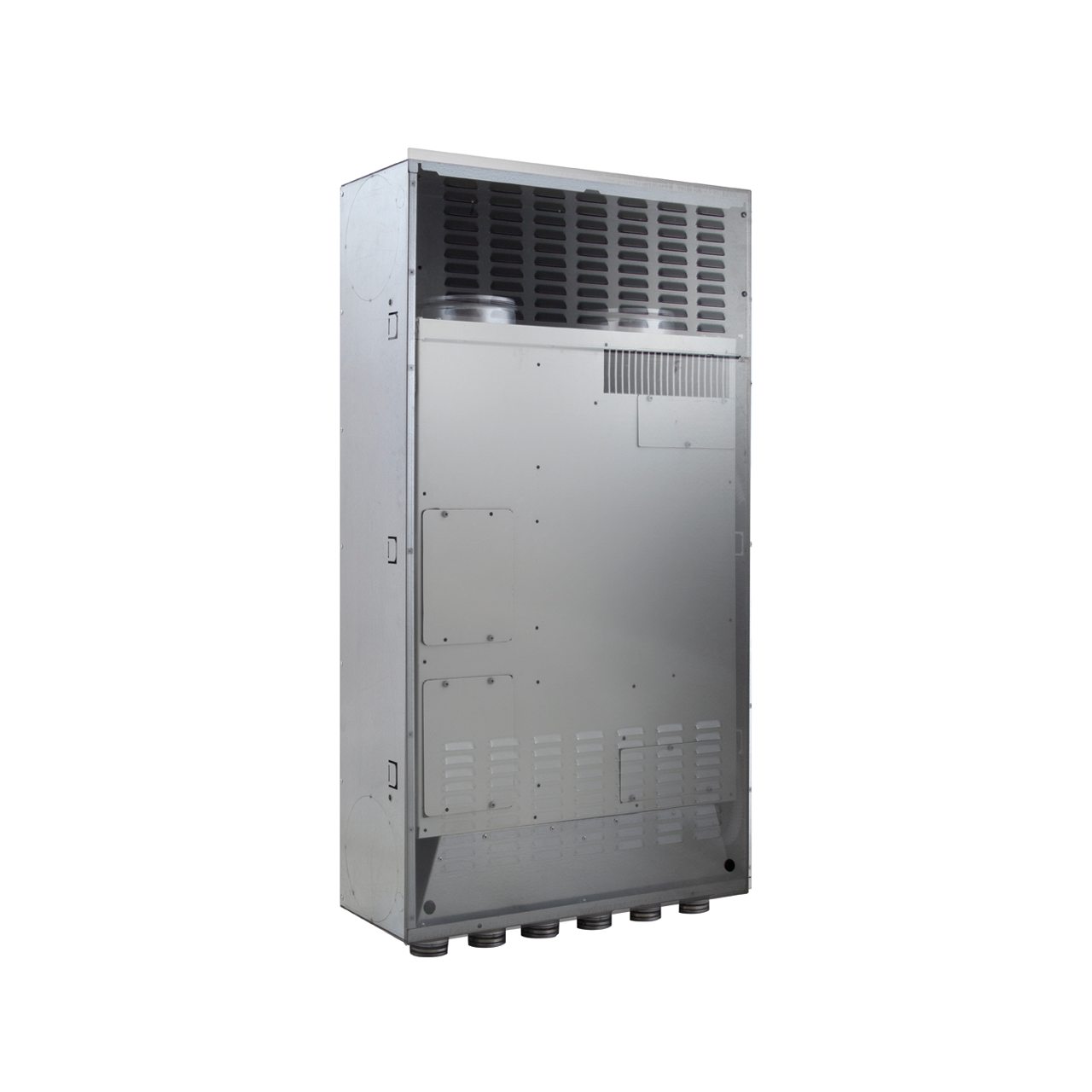

Vertical built-in

BV-IN is a vertical built-in solution, ideal for new homes where high thermal insulation, low leakage and airtight windows might impede an appropriate and efficient air exchange.


Clean air, hygiene and comfort are essential elements for people's well-being. BV-IN reduces energy consumption both in summer and winter, as the set temperature does not vary and the heat of the expelled air is recovered.

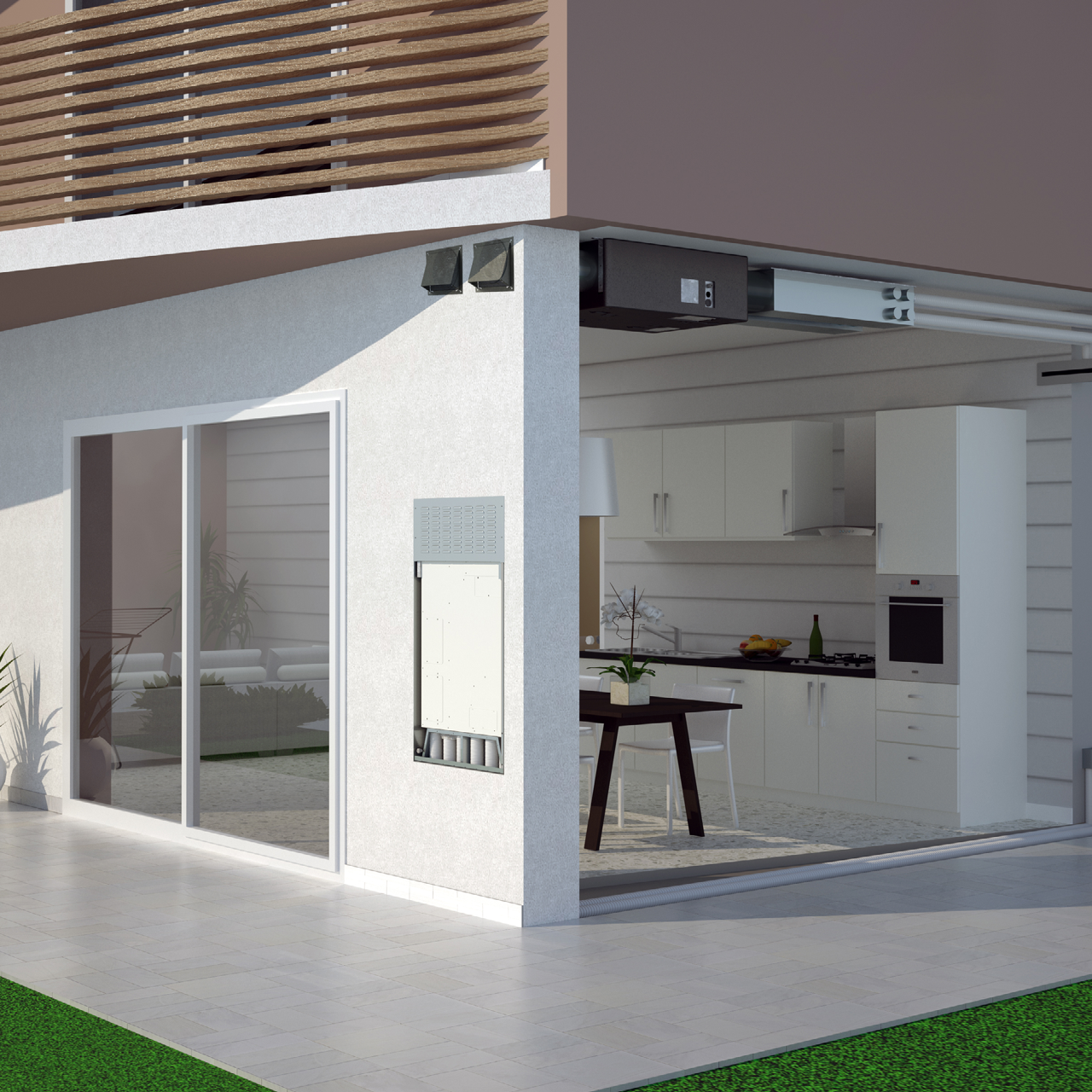

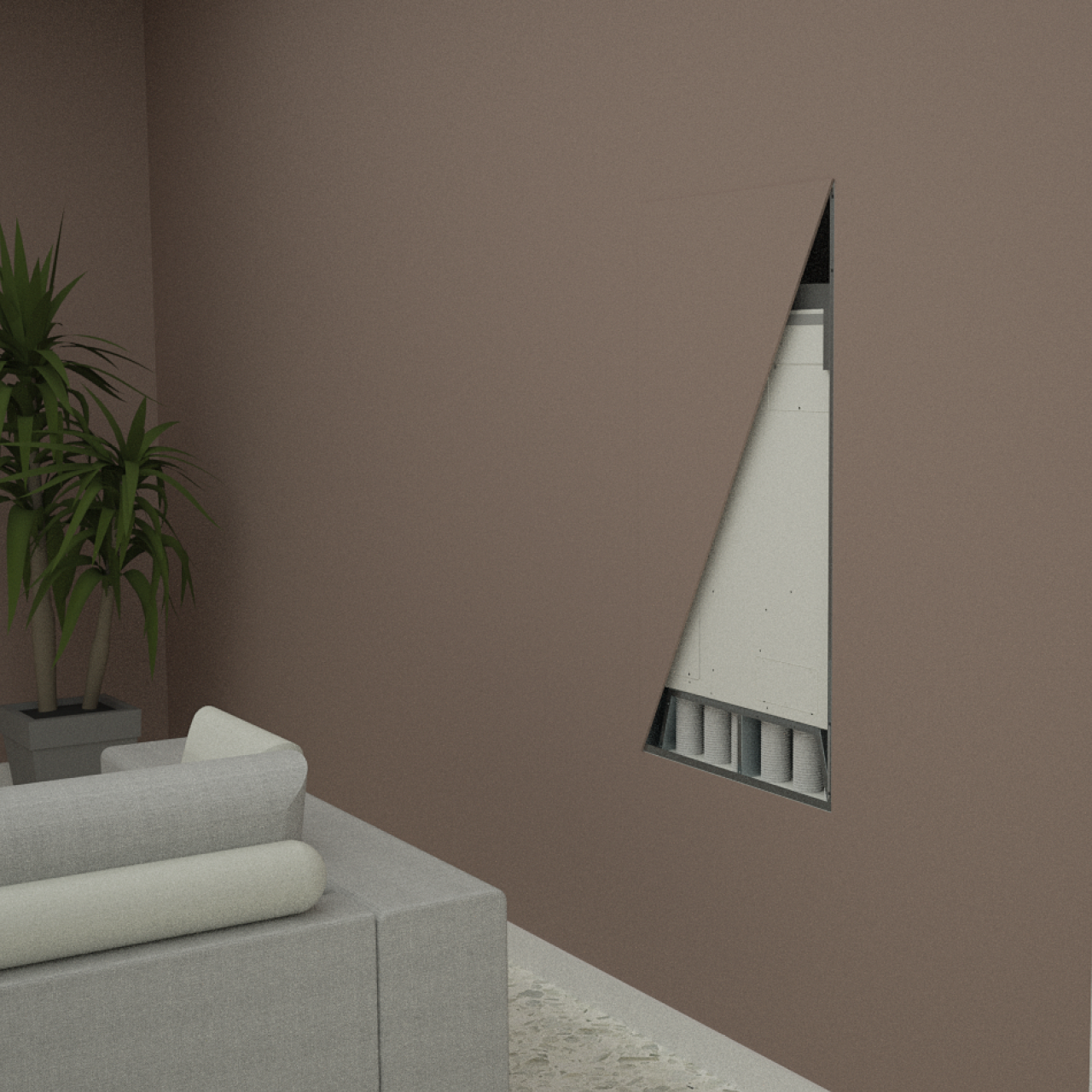

BV-IN units can be installed flush-mounted either on an internal or external wall.

Characteristics


  • Models: 160, 220
  • Built-in installation: no impact on interior spaces and false ceiling
  • Floor distribution
  • Installation inside or outside the house
  • Ultra-compact casing

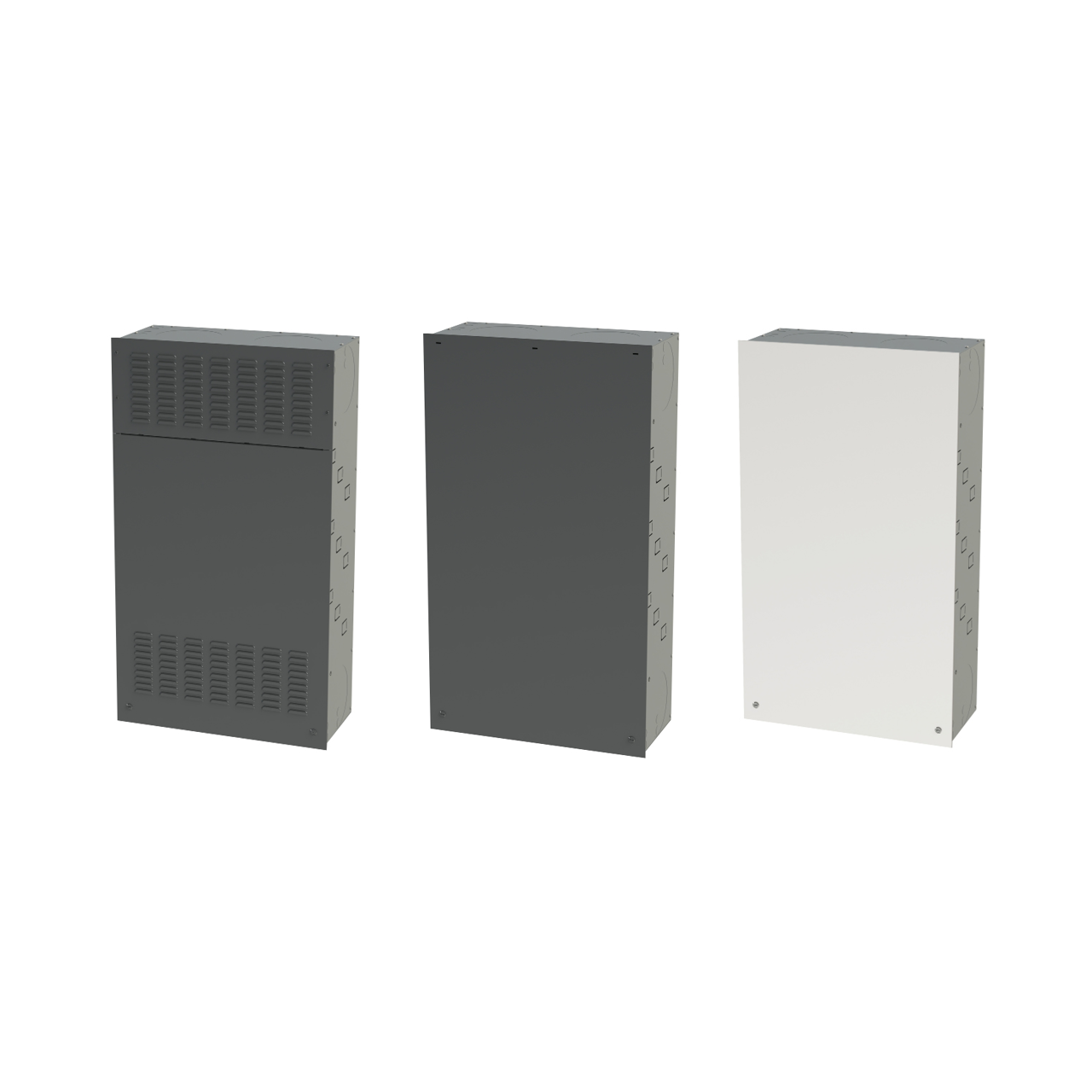

  • 3 front panels: galvanised with grilles, fully galvanised, interior face of panel painted
  • Up to 12 direct connections within the house (6 outlet+6 inlet)
  • Front access to the main components for quick and easy maintenance
  • Free-cooling as standard

Technical Specification

MODELS160220
Technical Data
Nominal air flowm³/h160220
Efficiency of heat recovery%8586
DHW capacityl140170
Class SEC (3)AA
Maximum absorbed powerW7490
Maximum absorbed current (1)A11,5
Sound power level Lwa (2)dB(A)4242
Weight BV-INkg2733
Box weight + frontal panel weightkg18+619+6

(1) Maximum value, including 2 fans and electronics.
(2) Sound power level considering ducted units
(3) Class A+ advanced control including temperature sensor and CO sensor or with advanced control including temperature and humidity sensors

Product Documents

Leaflet
