Heat Pumps

Auriga Compact

Air-source monobloc heat pumps with compact dimensions

Residential
Monobloc

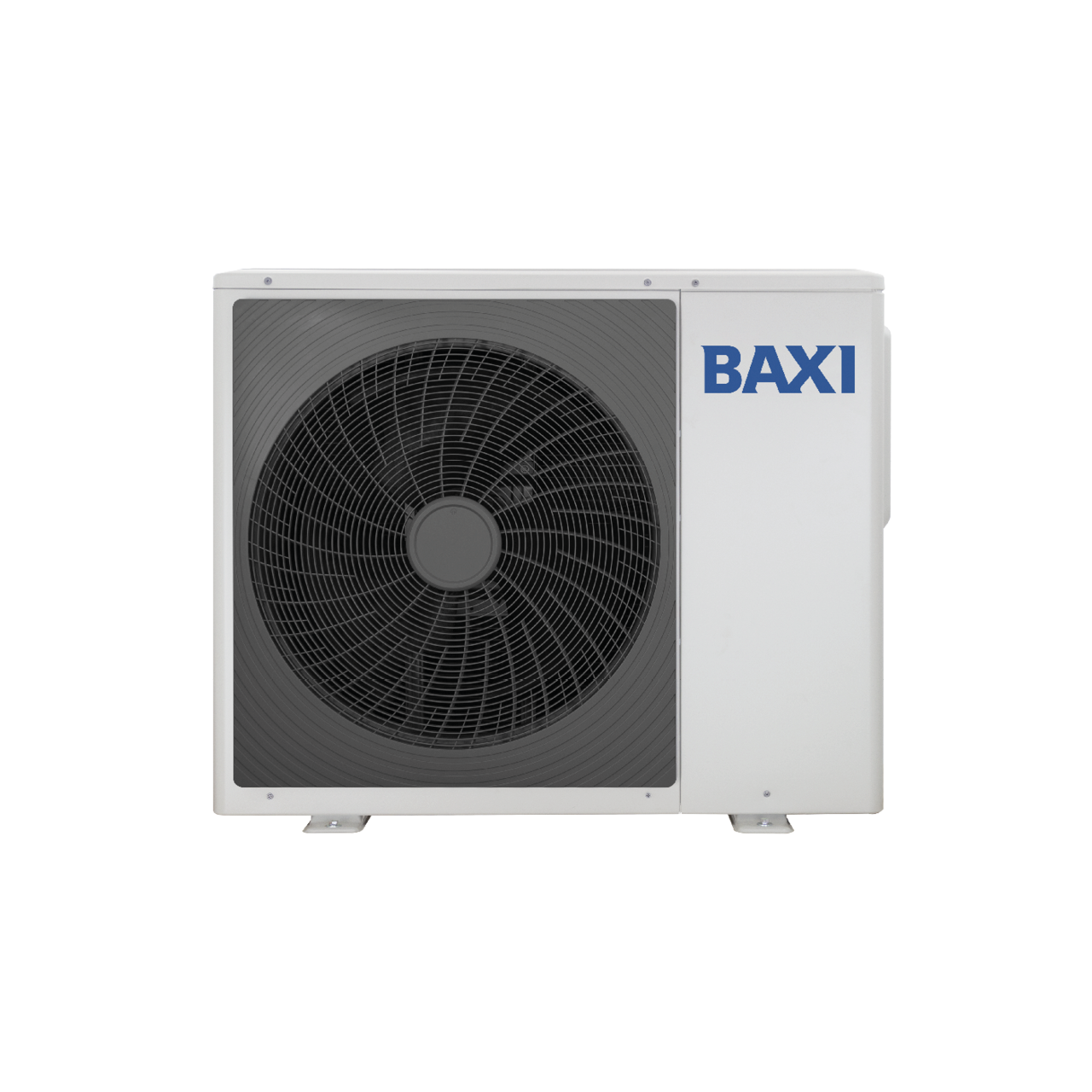

Auriga Compact is an all-in-one monobloc heat pump, operating with eco-friendly R32 refrigerant fluid, for heating and cooling.


It integrates all components into a single outdoor unit, simplifying installation and maintenance.

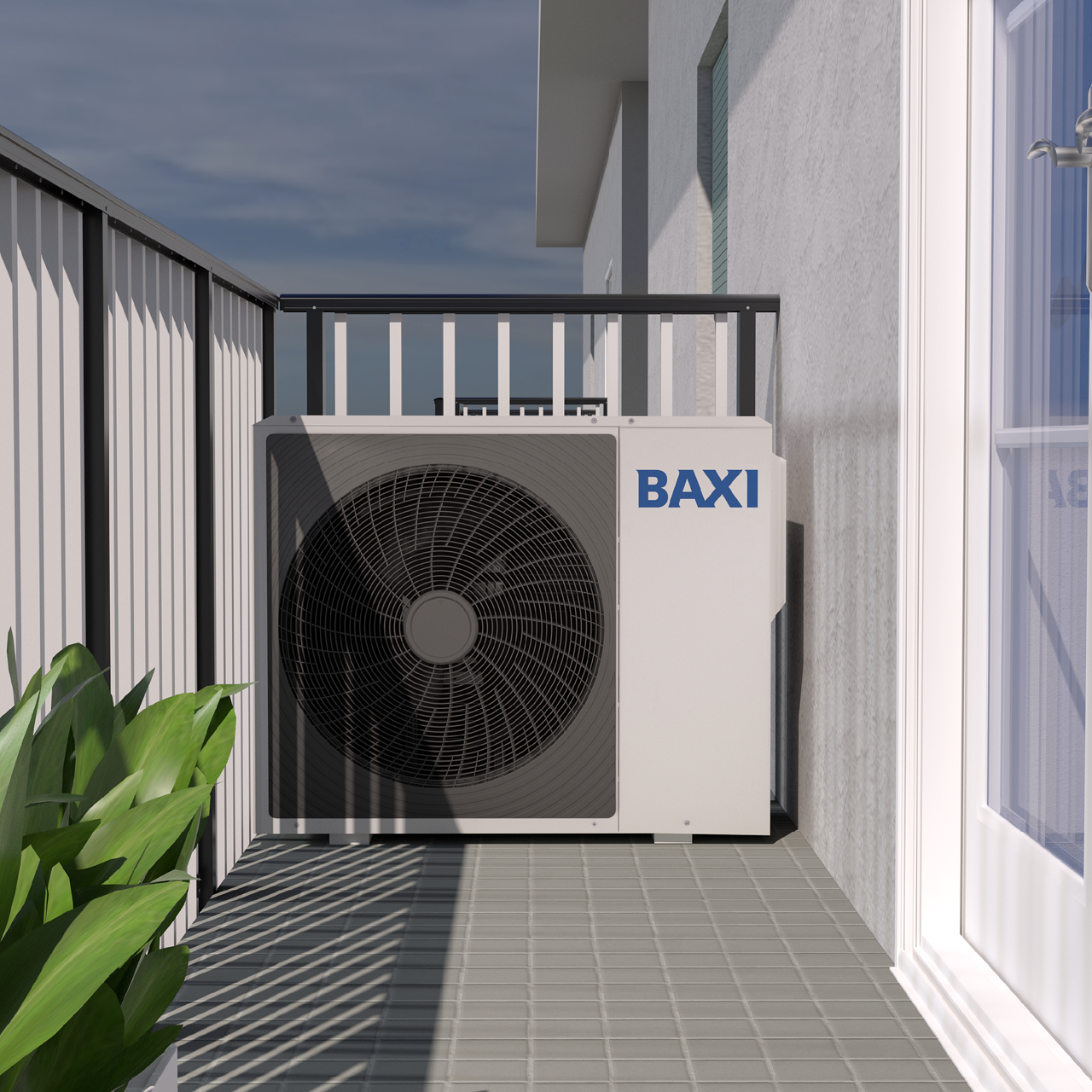

The small dimensions allow installation in narrow spaces such as balconies.


Perfect for new buildings or refurbishment projects with all kinds of low/medium temperature systems: fan coils, underfloor heating, or low temperature high efficiency radiators.

Characteristics


  • Models: 6, 8, 10
  • Complete hydraulic equipment pre-assembled to save installation time
  • Noise level equivalent to normal conversation (sound pressure 50 dB(A) max. for 4-10 kW models), suitable for installation in high-density residential areas
  • Appropriate for narrow spaces thanks to compact dimensions (length = 1 m)

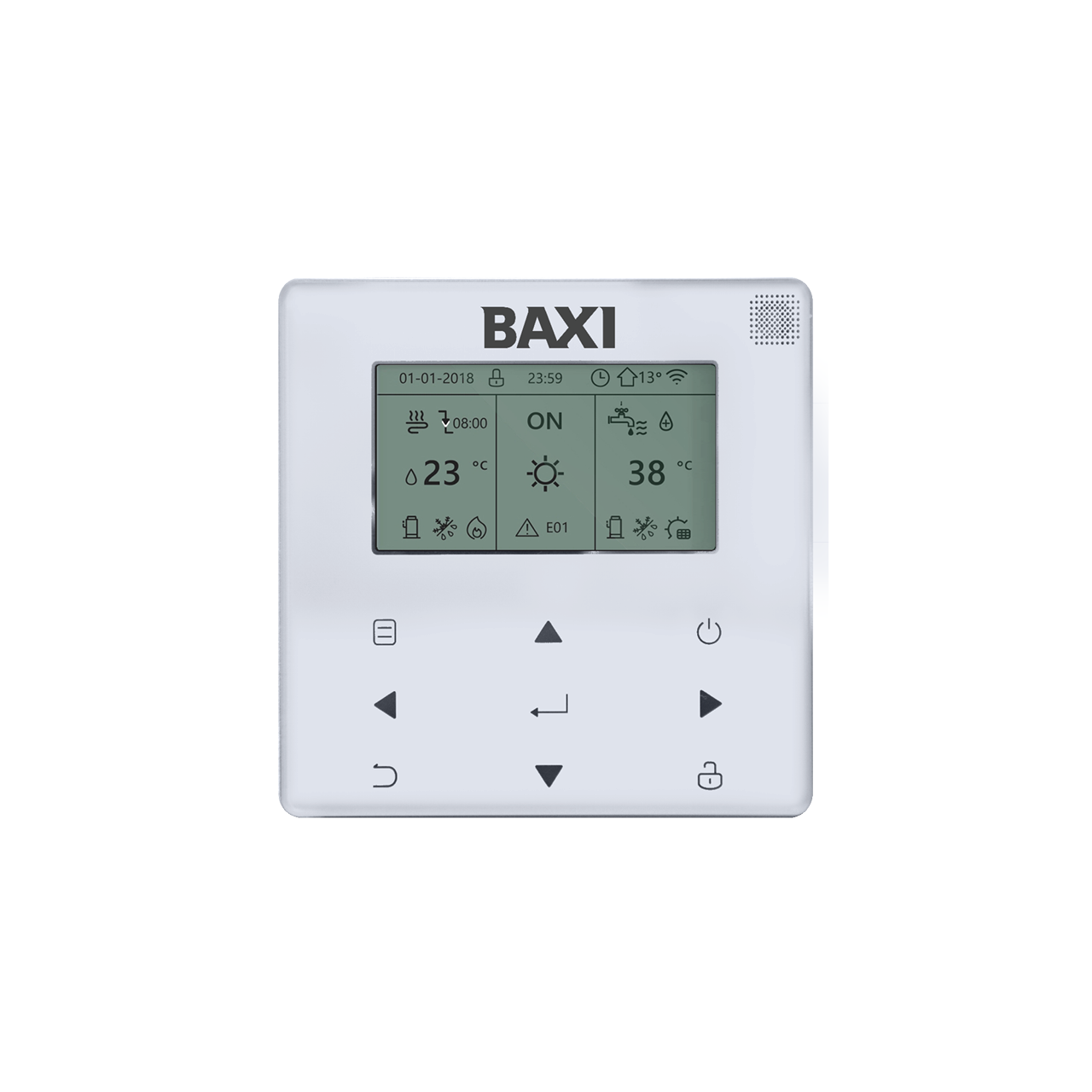

  • Control panel supplied as standard
  • Wide operation ratio DC inverter compressor, low GWP refrigerant (R32)
  • Modbus integration

Features

Hybrid Ready

It facilitates the integration of other heating sources, such as heat pumps and solar thermal, simplifying the climate management of your home

Keymark

The product follows the European Standards, and it is marked with Keymark

Smart Grid

It matches the supply and demand of electricity in real time, saving money on the energy bill

65°C

This product can produce hot water up to 65°C, without any other accessories required (such as immersion resistance)

R32

R32 has a low GWP (657), meaning it has a limited impact on the environment, electricity consumption and costs

Heating, cooling and DHW

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product. This appliance also allows the domestic hot water production
Show More
Show Less

Technical Specification

MODELS6810
ErP data
Nominal heating capacity (1)kW6,58,410
COP (1)5,35,054,7
Nominal cooling output (2)kW6,58,310
EER (2)5,14,854,3
Performance
Refrigerant fluid R32 / Equivalent CO2kg/tCO2e1,25/0,841,25/0,841,25/0,84
Sound power according to EN 12102: water temperature 55°C and outdoor air temperature 7°CdB(A)555859
Sound pressure - Average sound pressure, at 1 meter distance, in free field on a reflective surfacedB(A)
Operating limits
Heating mode - Outdoor air temperature min/max°C4547,548,5
Heating mode - Water temperature min/max°C+12/+65+12/+65+12/+65
Cooling mode - Outdoor air temperature min/max°C-5/+43-5/+43-5/+43
Cooling mode - Water temperature min/max°C+5/+25+5/+25+5/+25
Dimensions
System water content - min.l252525
Dimensions (hxwxd)mm865x 1040x 523865x 1040x 523865x 1040x 523
Empty weightkg878787
Power supplyV/Ph/Hz230/1/50230/1/50230/1/50

(1) Outdoor air temperature 7°C - 87% R.H., water temperature 30/35°C - EN 14511

(2) Outdoor air temperature 35°C, water temperature 18°C - EN 14511

Download Area

Energy label

Energy label

Get more details and information about Baxi products

Related Products

alya-wh-2

Alya WH

Air-source split heat pumps
alya-fs-1

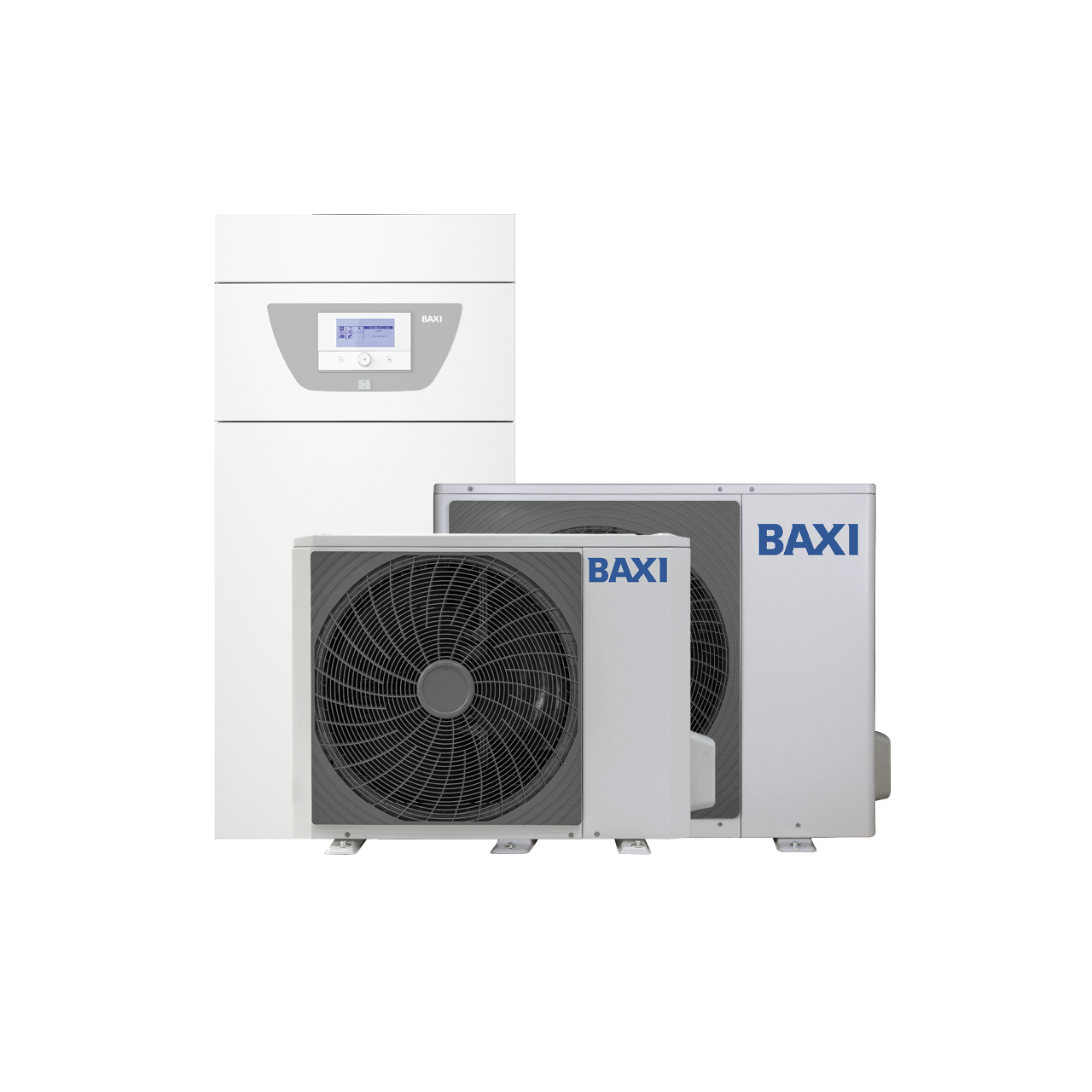

Alya FS
