Alya WH

Heat pumps
Alya WH

Heat pumps

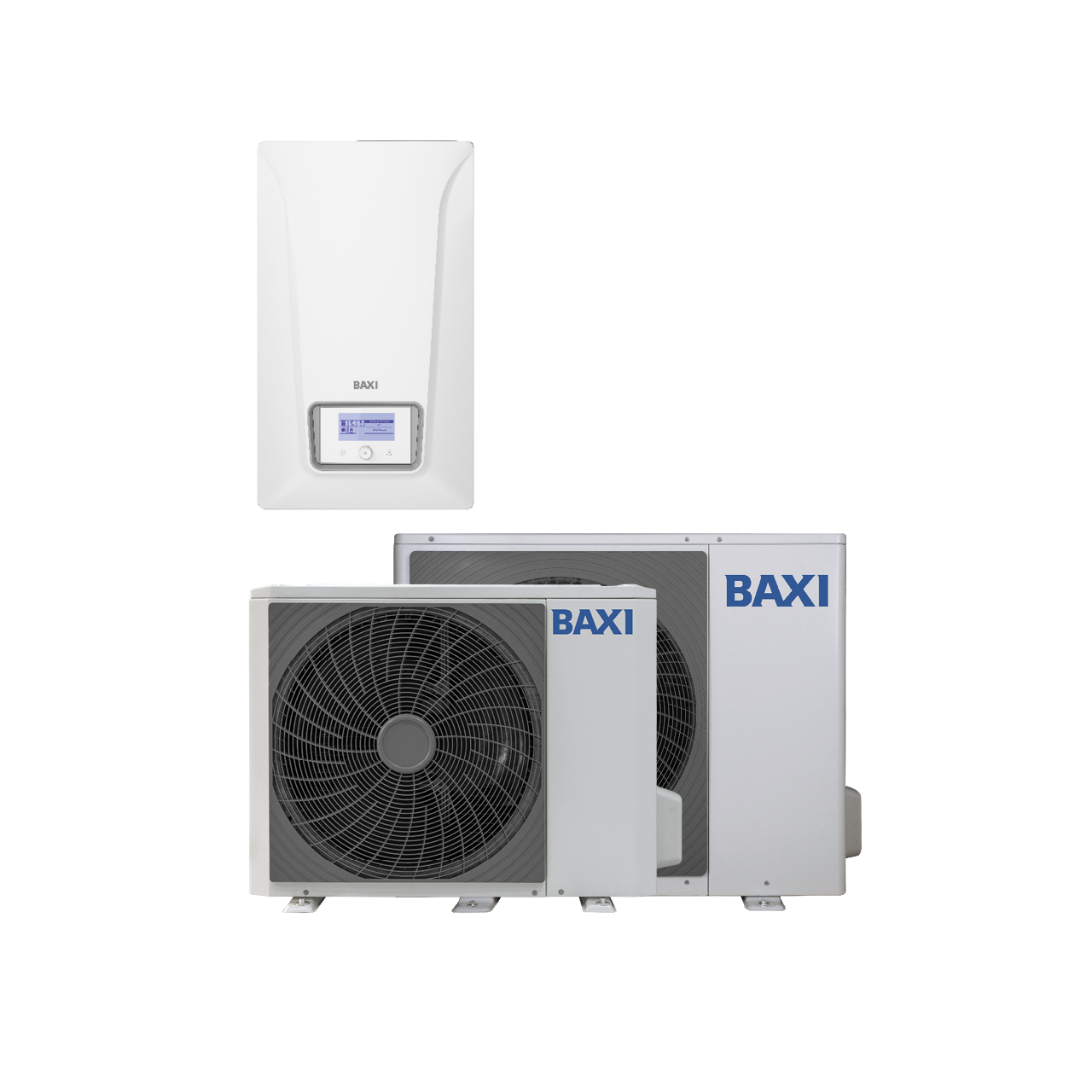

Air-source split heat pumps

Residential

Wall-Hung indoor unit

Alya WH range consists of air-source heat pumps for heating, cooling, and domestic hot water, operating with eco-friendly R32 refrigerant fluid.

Although conceived for new buildings, it has been designed to also deliver great performance when combined with radiators in refurbished heating systems.

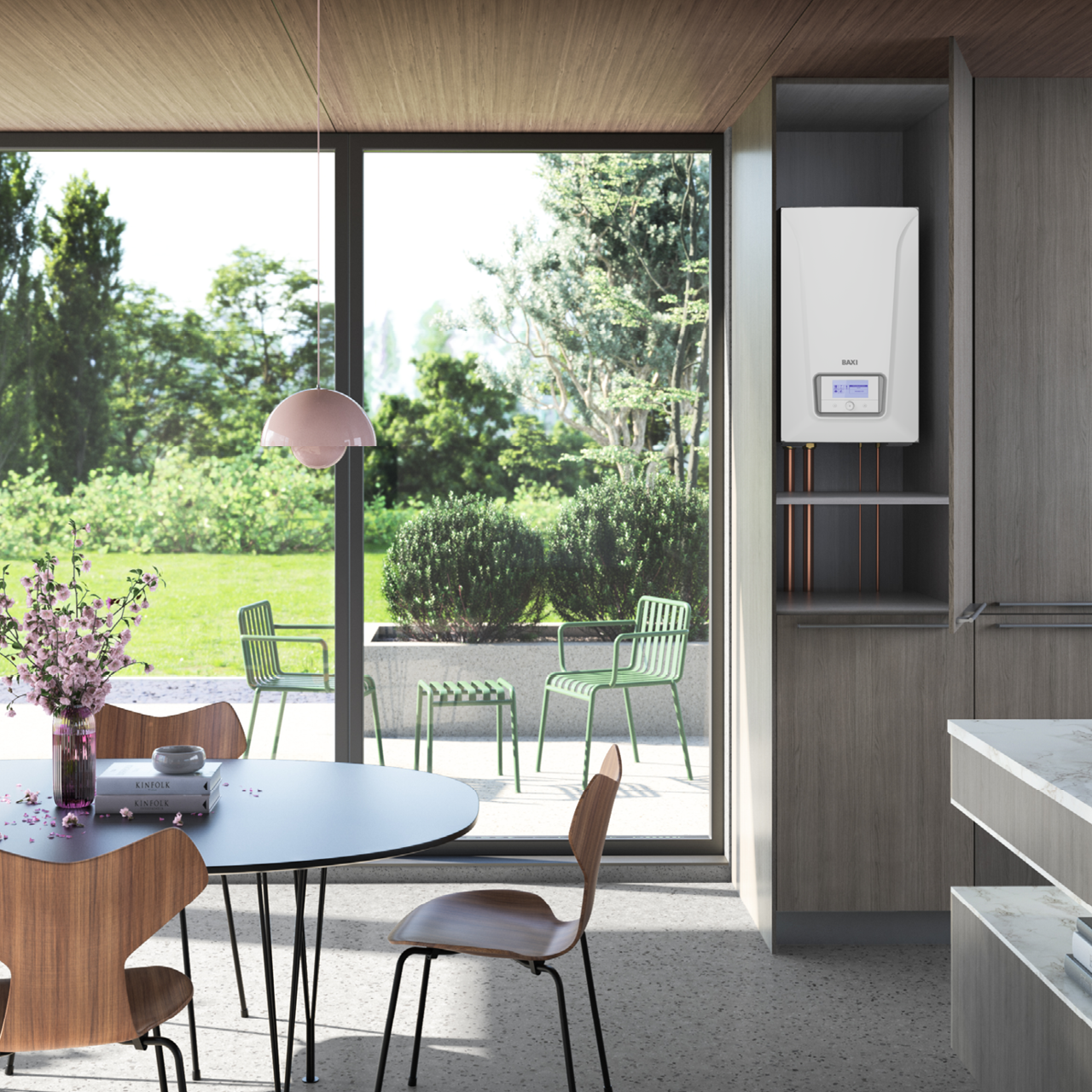

Alya WH is characterized by a wall-mounted internal unit with an elegant and compact design, ideal for installations in limited spaces in detached and semi-detached homes.

Alya WH heat pumps easily fit into any domestic environment, guaranteeing the best performance in all conditions (particularly in apartments or new homes up to 200 m2).

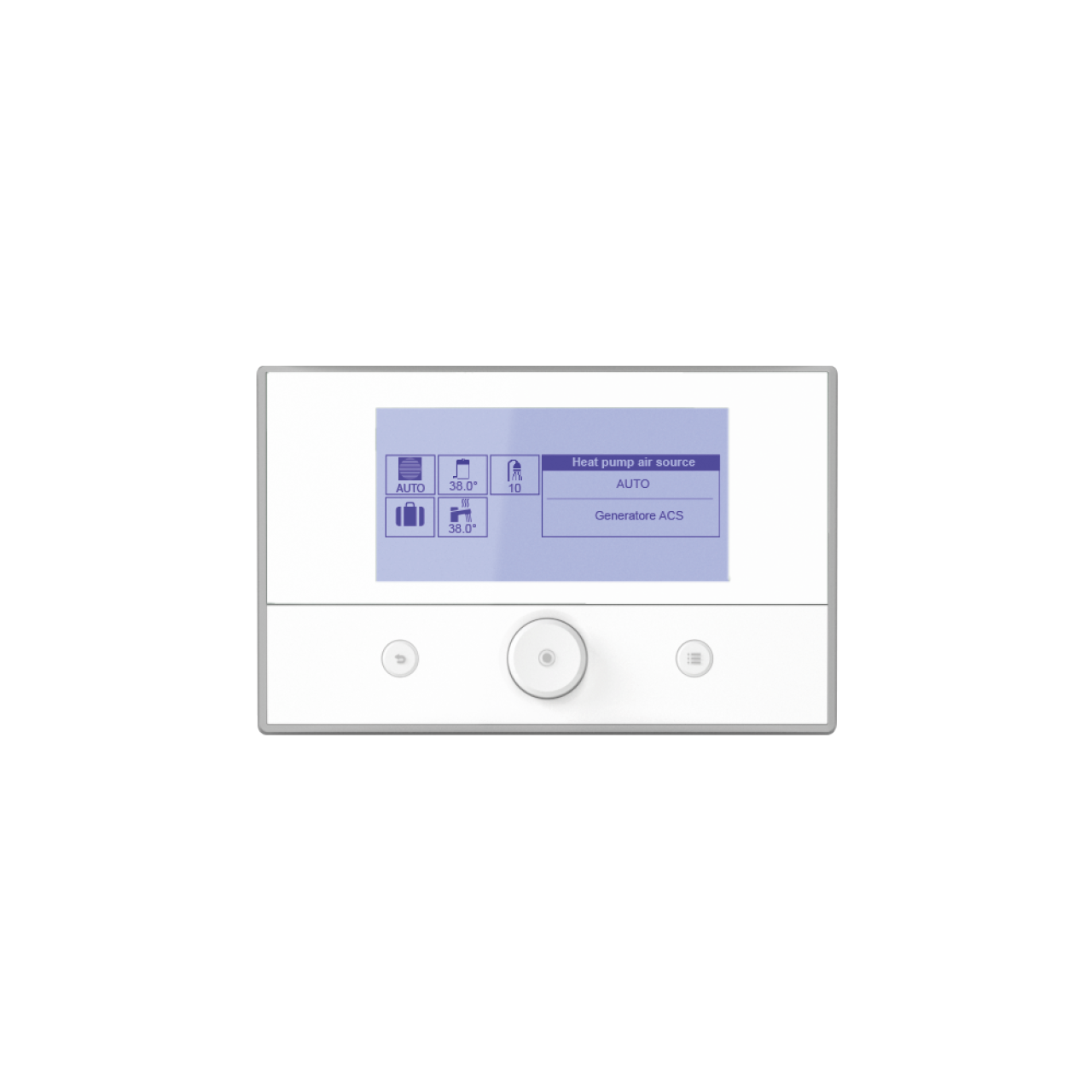

Wide display with intuitive text and icons for user-friendly access of the menu

Find a Dealer

Download Area

Characteristics

Models: 4M, 6M, 8M, 10M, 12M/T, 16M/T
Maximum energy efficiency
Can be directly connected with the Baxi Mago Smart Thermostat (available as option)
2nd mixing zone control (available as option)
Hydraulic back-up (version H) or electric back-up (version E)
Wide operation ratio DC inverter compressor, low GWP refrigerant (R32)
Low noise indoor unit (sound power <37 dB(A))
Wall-mounting bracket and condensate diptray supplied as standard

Features

Baxi Space

Advanced system control for a smart integration of different technologies. It offers a customized and efficient system tailored to meet all your needs and preferences

Digital Ready

It can be connected to BaxiMAGO, the WI-FI smart modulating thermostat, and Baxi service App. You can have your boiler always under control

Keymark

The product follows the European Standards, and it is marked with Keymark

Smart Grid

It matches the supply and demand of electricity in real time, saving money on the energy bill

65°C

This product can produce hot water up to 65°C, without any other accessories required (such as immersion resistance)

R32

R32 has a low GWP (657), meaning it has a limited impact on the environment, electricity consumption and costs

Heating, cooling and DHW

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product. This appliance also allows the domestic hot water production

Show Less

Technical Specification

MODELS		4M	6M	8M	10M	12M	16M	12T	16T
ErP data
Nominal heating capacity (1)	kW	4,25	6,2	8,3	10	12,1	16	12,1	16
COP (1)		5,2	5	5,2	5	4,95	4,5	4,95	4,5
Nominal cooling output (2)	kW	4,64	6,7	8,47	10,24	10,77	11,63	10,77	11,63
EER (2)		5,5	4,95	5,11	4,71	3,69	3,61	3,69	3,61
Performance
Refrigerant fluid R32 / Equivalent CO2	kg/tCO2e	1,50/1,02	1,65/1,11	1,65/1,11	1,84/1,24	1,84/1,24	1,84/1,24	1,84/1,24	1,84/1,24
Sound power - Indoor unit	dB(A)	33	33	36	37	37	37	37	37
Sound power - Outdoor unit	dB(A)	52	52	54	54	56	56	56	56
System
System water content - min.	l	24	29	33	37	41	48	41	48
Max. pre-loaded length	m	15	15	15	15	15	15	15	15
Dimensions
Empty weight - Indoor unit	kg	40	40	40	40	42	42	42	42
Empty weight - Outdoor unit	kg	57,5	57,5	76,5	76,5	96	112	96	112

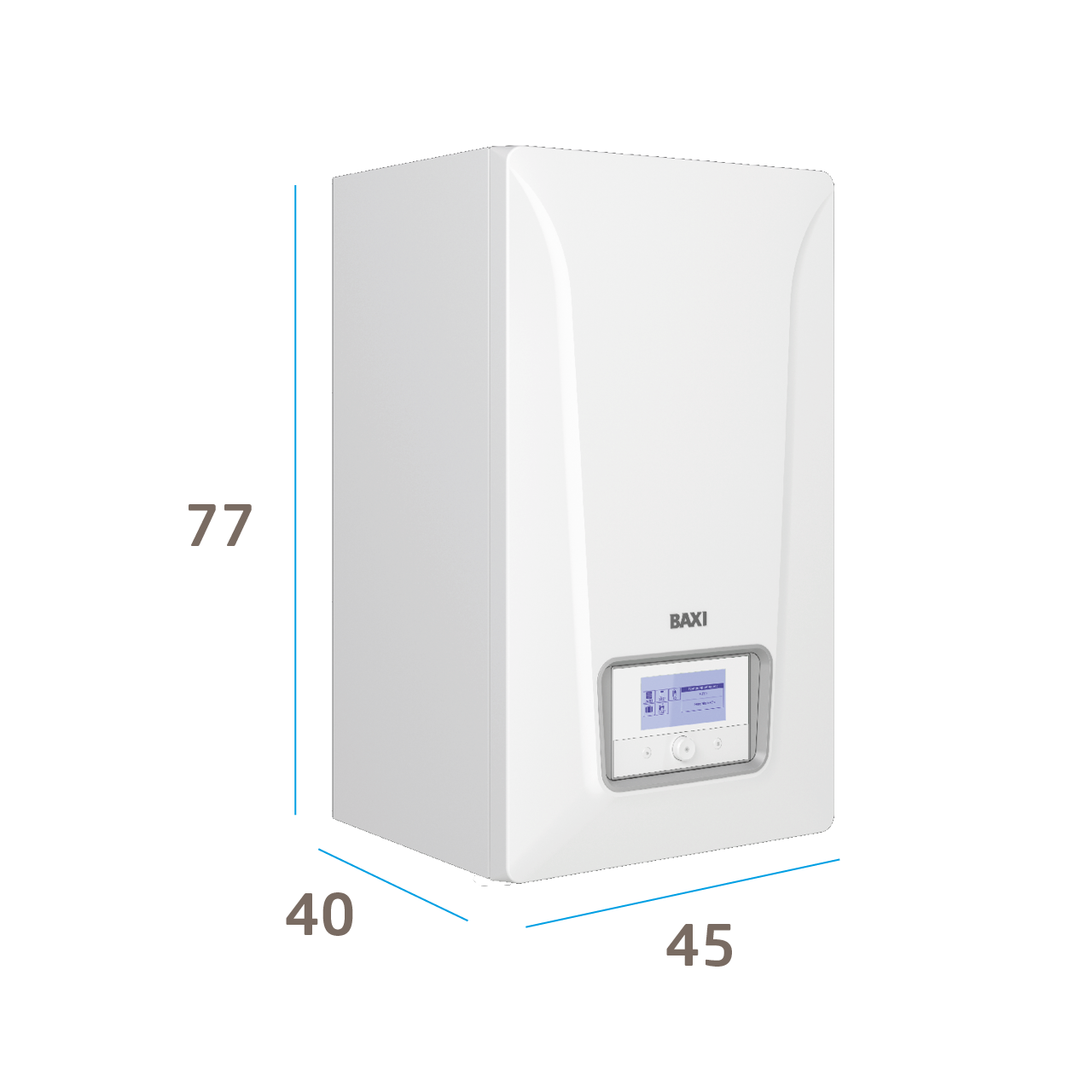

Dimensions (hxwxd) - Indoor unit	mm	770x450x408	770x450x408	770x450x408	770x450x408	770x450x408	770x450x408	770x450x408	770x450x408
Dimensions (hxwxd) - Outdoor unit	mm	712x1008x375	712x1008x375	712x1008x375	712x1008x375	865x1118x523	865x1118x523	865x1118x523	865x1118x523
Electrical characteristics
Power supply	V/Ph/Hz	230/1/50	230/1/50	230/1/50	230/1/50	230/1/50	230/1/50	400/3/50	400/3/50
