Air conditioning

Multi Split air conditioners

Residential / Commercial

Wall Hung, Floor standing, Cassette, Ducted

A single outdoor unit can manage up to 5 indoor units, reducing the space required for outdoor installations.

Each indoor unit, with choice of wall-hung, cassette, console and ducted models, can be individually controlled.

Easy, flexible and cost effective installation, due to the refrigerant pipe circuit extending up to a maximum of 80 metres (one way), with a maximum height between the outdoor unit and each indoor unit of 15 metres.

Find a Dealer

Characteristics

Models: from 14.000 to 42.000 Btu/h
Complete range from 4 to 12,5 kW (from 14.000 to 42.000 Btu/h)

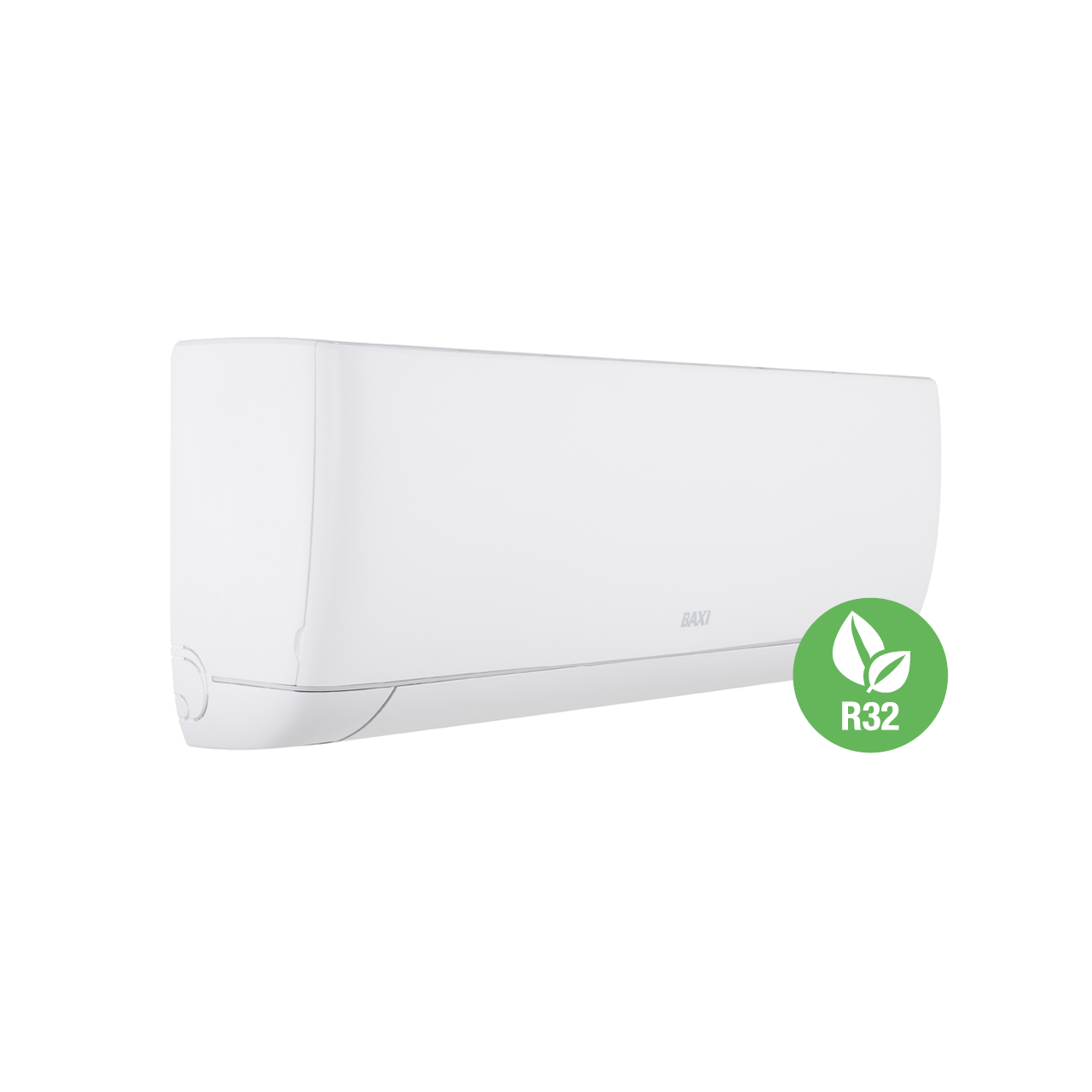

4 internal units: wall-hung, cassette, console and ducted
High energy efficiency class: A++ in cooling and class A+ in heating- gas
Eco-friendly R32 refrigerant and greater performance
Silent operation, up to 20 dB(A) for the internal unit
Extended operating limits (operation from -15 °C to +52 °C)
Easy-to-use remote control included with wall-hung, cassette and console units; wall flush-mounted control supplied with ducted models
Auto restart after a voltage drop
Condensate drainage supplied as standard with cassette and ducted units

Features

Heating and cooling

A year-round comfort: you can heat your home in winter and cool it in summer, with one sole product

Technical Specification

MODELS		14.000 Btu/h 2x1	18.000 Btu/h 2x1	21.000 Btu/h 3x1	27.000 Btu/h 3x1	36.000 Btu/h 4x1	42.000 Btu/h 4x1
Technical Data
SEER		6,2	6,2	6,1	6,1	6,2	6,1
SCOP		4,1	4	4,2	4,2	4,1	4
Rated cooling capacity	kW	4,1	5,3	6,2	7,9	10,5	12
Rated heating capacity	kW	4,5	5,6	6,6	8,2	11	13
Dimensions (w x h x d)	mm	785 x 555 x 300	785 x 555 x 300	900 x 700 x 350	900 x 700 x 350	1000 x 808 x 409	1000 x 808 x 409
Weight	kg	30	30	41,5	44,5	74	75
Sound power level	db(A)	53	54	56	57	68	68

Available indoor units: Astra wall hung 7.000, 9.000, 12.000, 18.000 Btu/h; Console floor standing 9.000, 12.000, 16.000 Btu/h; Cassette floor/ceiling 9.000, 12.000, 18.000, 24.000 Btu/h; Ducted 9.000, 12.000, 18.000 Btu/h.
