Water heaters

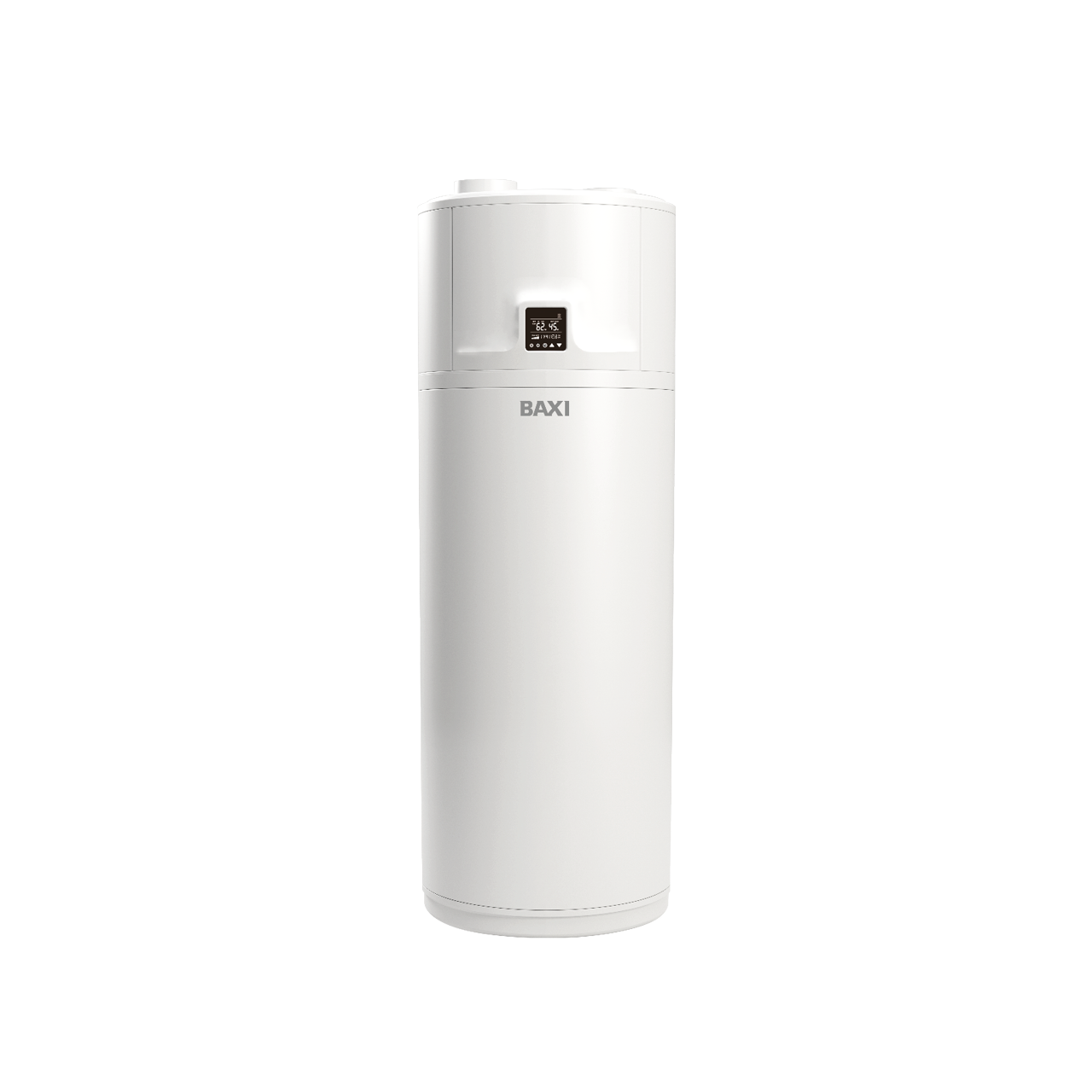

SPC WH

Air-source monobloc heat pump water heaters

Residential
Wall Hung

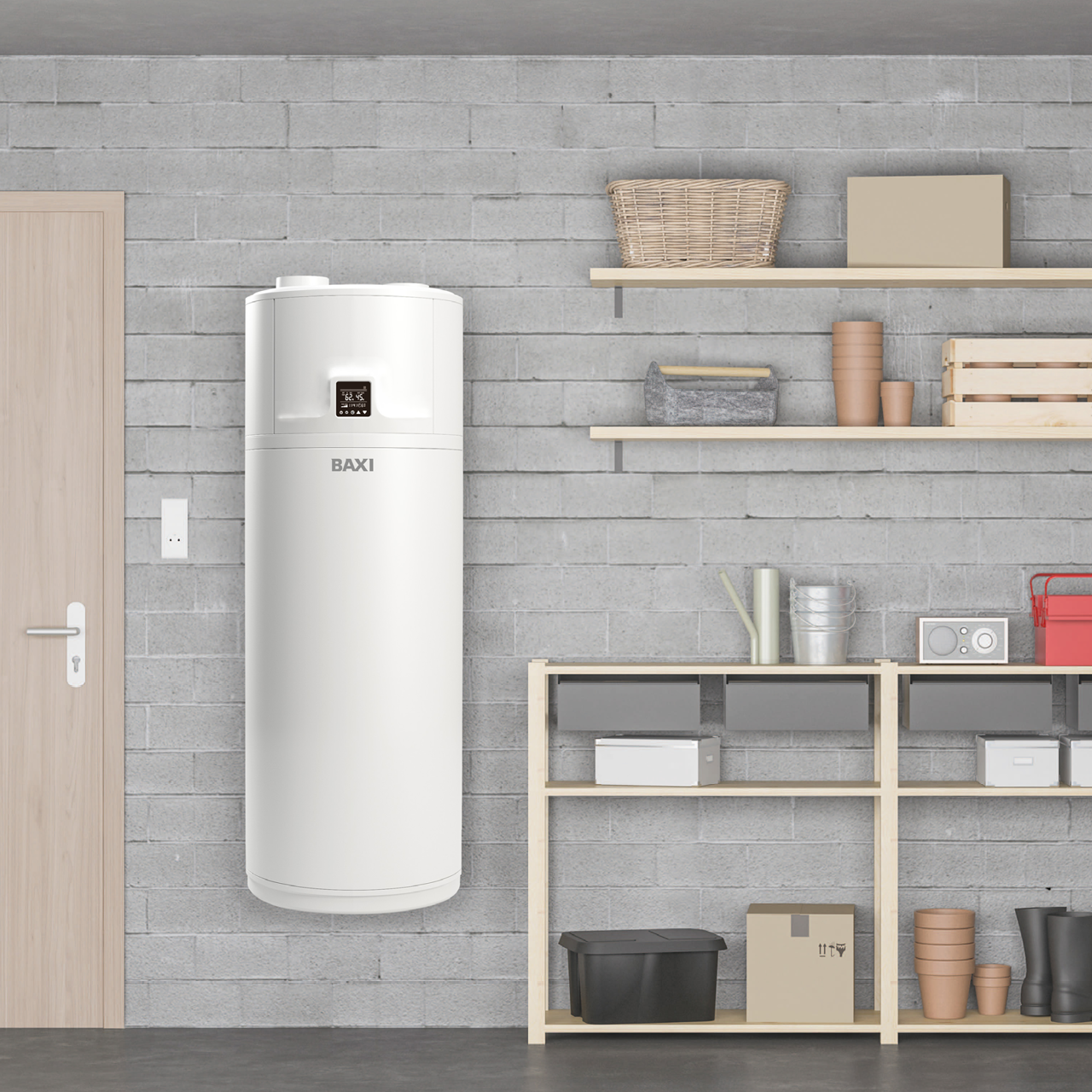

The wall-mounted SPC WH is characterised by ease and flexibility of installation, high efficiency and very short loading time.


SPC WH has been designed to operate with the new eco-friendly R513A refrigerant.



Despite its compact dimensions, the SPC WH can heat a large volume of water up to 60°C with minimum energy consumption, thanks to its wide operating range (from -5 °C to 43 °C), which enables heat to be extracted directly from the air.

Find a Dealer
Download Area
spc-wh-1
Characteristics


  • Models: 98, 143 liters
  • Domestic hot water production up to 60°C
  • Operates with external air from -5 °C from +43 °C
  • Top-category efficiency: COP = 3,40 (A14/W55)
  • R513A refrigerant gas (low GWP = 631)
  • Electrical back up 1,5 kW
  • Reduced electric consumption: only 240 W
  • Short loading time: 2h37m for SPC 100 WH in Boost mode
  • Silent operation: sound power 50 dB(A)
  • Connection for PV integration / remote ON-OFF
  • Compact dimensions: fits every room
  • Easy-to-read display
  • Anti-legionella function
  • Built-in magnesium anode

Features

R513A

R513a has a low GWP (631), meaning it has a limited impact on the environment, electricity consumption and costs

Domestic hot water

This product allows the DHW production

PV connection

The connection for PV integration allows to exploit the energy from renewable sources, with further savings and overall system efficiency

60°

This product can produce hot water up to 60°C, without any other accessories required (such as immersion resistance)
Show More
Show Less

Technical Specification

MODELS100 WH150 WH
ErP data
Load profileML
Energy efficiency for DHW ŋwh (3)%120%116%
Rated heat output (1)kW0,670,68
Absorbed electrical power (1)kW0,240,24
COP (1)2,82,8
Rated heat output (2)kW0,790,8
Absorbed electrical power (2)kW0,230,24
COP (2)3,43,4
Performance
Electrical back-up outputkW1,51,5
Exchanger surfacem²
Loading time (1)7h 04m9h 08m
Loading time - BOOST MODE (1)2h 37m4h 20m
Heat losseskWh/24h0,650,88
Maximum working pressurebar88
Air flow rate (1)m³/h235235
Available air pressurePa6060
Maximum DHW temperature *°C6060
40 °C mixing water volumel135178
Min/max outdoor temperature (with ducting)°C-5/+43-5/+43
Dimension
Storage volumel98143
Air duct diametermm125125
Maximum length of the air duct (inlet and outlet)m88
Miminum volume of the installation room (with ducting)m³/h
Miminum volume of the installation room (without ducting)m³/h2020
Refrigerant fluidR513AR513A
Refrigerant fluid R513A / Equivalent CO2kg - tCO2e0,76 - 0,480,76 - 0,48
Refrigerant fluid R290 / Equivalent CO2kg - tCO2e
Sound power, LwadB(A)5050
Power supplyV/Ph/Hz230/1/50230/1/50
Dimensions (h x d)mm1351 x 5201712 x 520
Empty weightkg5671

* Maximum DHW temperature with heat pump only. Maximum water temperature with electric resistance = 70 °C.

(1) According to EN 16147: air temperature = 7 °C, water inlet temperature = 10 °C, DHW temperature = 55 °C

(2) According to EN 16147: air temperature = 14 °C, water inlet temperature = 10 °C, DHW temperature = 55 °C

(3) Average climatic conditions

Download Area

Energy label

Energy label

Get more details and information about Baxi products

Find a Dealer

Related Products

spc-plus-1

SPC Plus

Air-source monobloc heat pump water heaters
View product
must

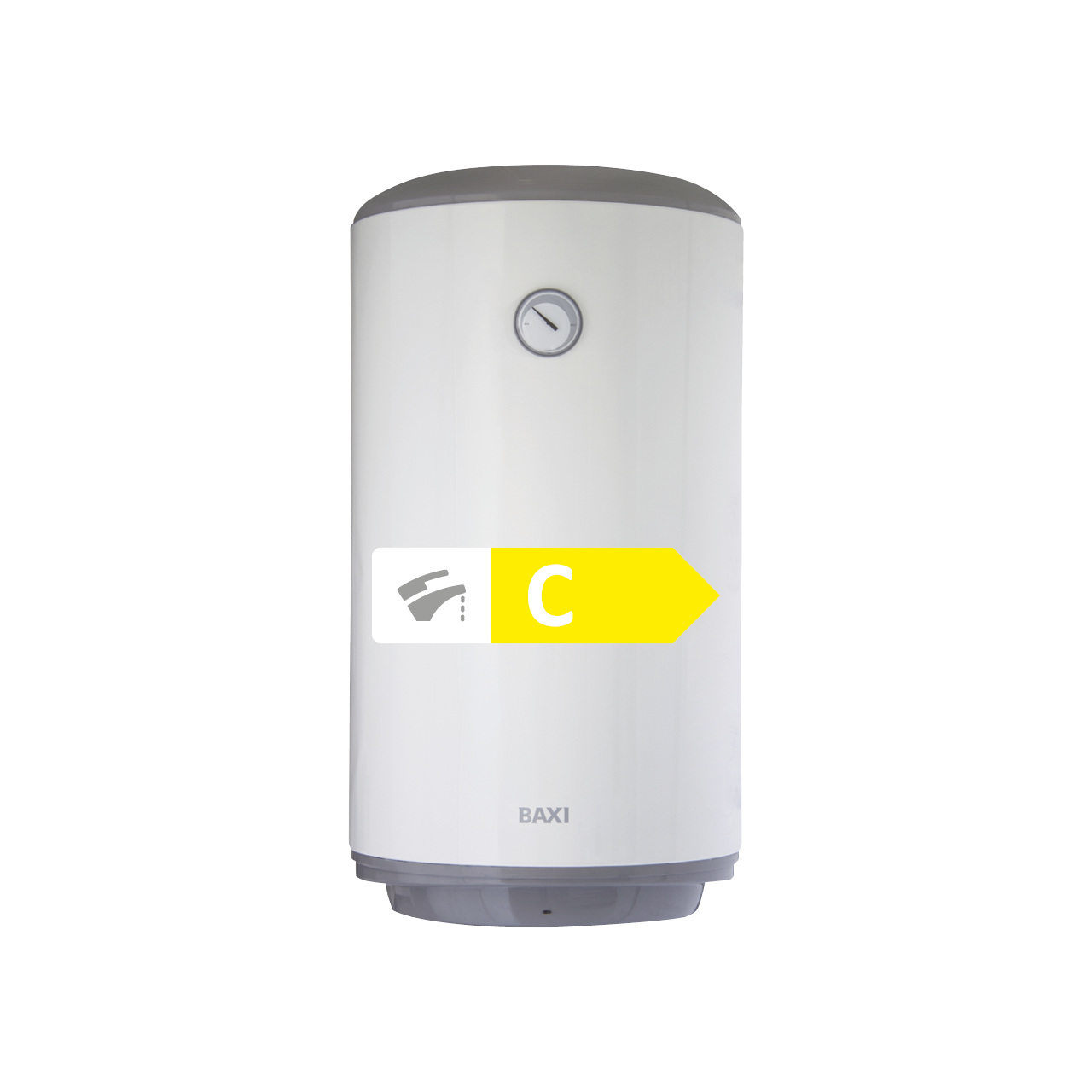

Must+
